$3.89
Add to Cart

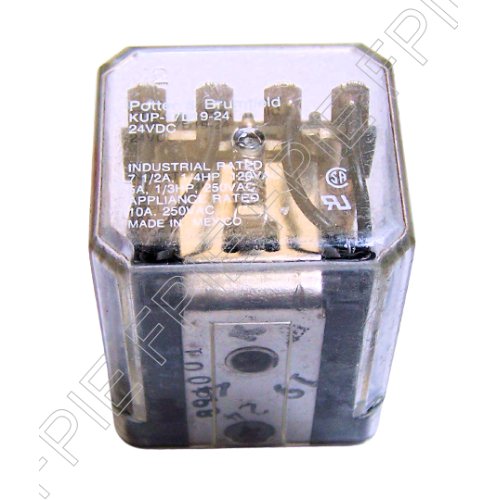

24VDC, 10A Relay 4PDT (4 Form C) by Potter & Brumfield (KUP-17D19-24)
24VDC, 10A Relay 4PDT (4 Form C) by Potter & Brumfield (KUP-17D19-24).
Specs:
Relay Type: General Purpose
Termination Style: Plug In, Quick Connect - 0.110" (2.8mm)
Coil Insulation: Class B
Operating Temperature: -45°C ~ 50°C
Contact Material: Silver Cadmium Oxide (AgCdO)
Contact Rating (Current): 10A at 240VAC / 28VDC
Coil Current: 75 mA
Operate Time: 15 ms
Release Time: 10 ms
Coil Resistance: 320 Ohms
Coil Type: Non-Latching
Switching Voltage: 240VAC - Max
Contact Form: 4PDT (4 Form C)
Coil Voltage: 24VDC
Mounting Type: Socket (14-Pin)
Warning:
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
